SCHNEIDER LC1D95R7 STOCK DISPONIBLE
​


CONTACTOR – > MARCA: SCHNEIDER -> MODELO: LC1D95R7 ; REALIZAMOS ENVIOS A TODO EL PERU SCHNEIDER ENTREGA INMEDIATA

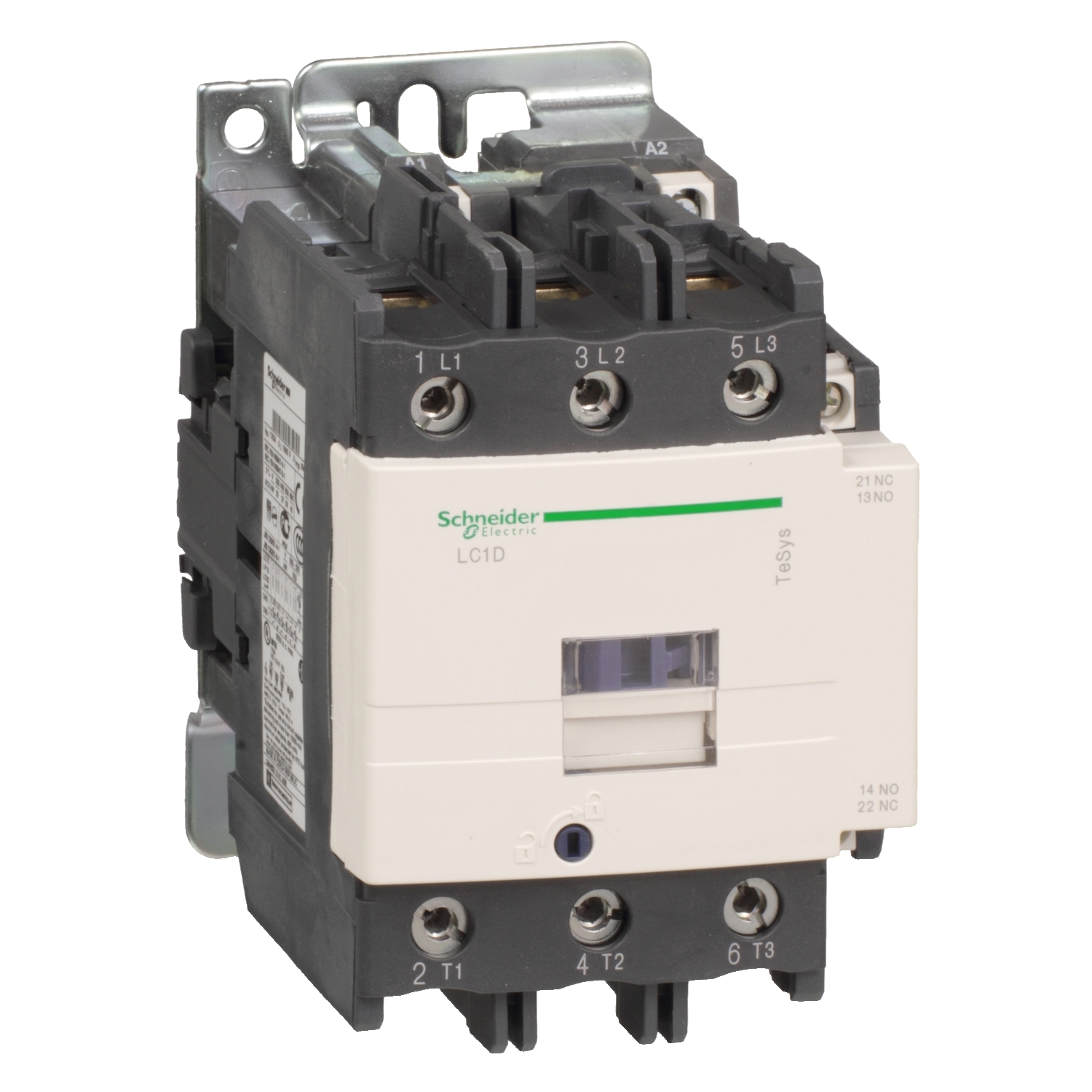

CONTACTOR TESYS 95A 1NA+1NC 33/60HP 220/440V BOB-440V. 50/60H —- Principal
Gama TeSys
Nombre del producto TeSys D
Tipo de producto o componente
Conector
Nombre corto del dispositivo
LC1D
Aplicación del contactor Carga resistiva
Control del motor
Categoría de empleo AC-3
AC-1
AC-4
Número de polos 3P
Power pole contact
composition
3 NA
[Ue] tensión asignada
de empleo
Power circuit: 1000 V AC 25…400 Hz
[Ie] corriente asignada
de empleo
95 A (at <60 °C) at <= 440 V AC-3 for power circuit 125 A (at <60 °C) at <= 690 V AC-1 for power circuit Potencia del motor en kW 25 KW at 220...230 V AC 50 Hz (AC-3) 45 KW at 380...400 V AC 50 Hz (AC-3) 45 KW at 415...440 V AC 50 Hz (AC-3) 55 KW at 500 V AC 50 Hz (AC-3) 45 KW at 660...690 V AC 50 Hz (AC-3) 45 kW at 1000 V AC 50 Hz (AC-3) Motor power HP (UL / CSA) 7.5 Hp at 115 V AC 60 Hz for 1 phase motors 15 Hp at 230/240 V AC 60 Hz for 1 phase motors 25 Hp at 200/208 V AC 60 Hz for 3 phases motors 30 Hp at 230/240 V AC 60 Hz for 3 phases motors 60 Hp at 460/480 V AC 60 Hz for 3 phases motors 60 hp at 575/600 V AC 60 Hz for 3 phases motors Tipo de circuito de control AC at 50/60 Hz [Uc] tensión del circuito de control 440 V CA 50/60 Hz Composición de los contactos auxiliares 1 NA + 1 NC [Uimp] Tensión asignada de resistencia a los choques 8 kV conforming to IEC 60947 Categoría de sobretensión III [Ith] corriente térmica convencional 10 A (at 60 °C) for signalling circuit 125 A (at 60 °C) for power circuit Irms poder de conexión nominal 1100 A at 440 V AC for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 Poder asignado de corte 1100 A at 440 V for power circuit conforming to IEC 60947 [Icw] Corriente temporal admisible 1100 A 40 °C - 1 s for power circuit 800 A 40 °C - 10 s for power circuit 400 A 40 °C - 1 min for power circuit 135 A 40 °C - 10 min for power circuit 140 A - 100 ms for signalling circuit 120 A - 500 ms for signalling circuit 100 A - 1 s for signalling circuit Fusible asociado 10 A gG for signalling circuit conforming to IEC 60947-5-1 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit Impedancia media 0.8 mOhm - Ith 125 A 50 Hz for power circuit 3 [Ui] tensión asignada de aislamiento Power circuit: 1000 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Durabilidad eléctrica 1.2 Mcycles 95 A AC-3 1.3 Mcycles 125 A AC-1 Potencia disipada por polo 12.5 W AC-1 7.2 W AC-3 Front cover Con Tipo de montaje Placa Carril Normas EN/IEC 60947-1 EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 Certificaciones de producto IECEE CB Scheme UL CSA CCC EAC LROS (Lloyds Register of Shipping) RINA BV DNV-GL Conexiones - terminales Control circuit: screw clamp terminals 2 cable(s) 1… 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1… 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1… 4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1… 4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1… 4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1… 4 mm²solid without cable end Power circuit: connector 1 cable(s) 4… 50 mm²flexible without cable end Power circuit: connector 2 cable(s) 4… 25 mm²flexible without cable end Power circuit: connector 1 cable(s) 4… 50 mm²flexible with cable end Power circuit: connector 2 cable(s) 4… 16 mm²flexible with cable end Power circuit: connector 1 cable(s) 4…50 mm²solid without cable end Power circuit: connector 2 cable(s) 4…25 mm²solid without cable end Par de apriete Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm Power circuit: 12 N.m - on connector hexagonal screw head 4 mm Duración de maniobra 20...35 ms closing 6...20 ms opening Nivel de fiabilidad de seguridad B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1 Endurancia mecánica 4 Mciclos Rango de operación 3600 cyc/h 60 °C

Complementario
Característica de la bobina Sin filtro antiparasitario de serie
Límites de tensión del circuito de control 0.8…1.1 Uc (-40…55 °C):operational AC 50 Hz
0.85…1.1 Uc (-40…55 °C):operational AC 60 Hz
0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
1…1.1 Uc (55…70 °C):operational AC 50/60 Hz
Consumo a la llamada en VA 245 VA 60 Hz cos phi 0.75 (at 20 °C)
245 VA 50 Hz cos phi 0.75 (at 20 °C)
Consumo de mantenimiento en VA 26 VA 60 Hz cos phi 0.3 (at 20 °C)
26 VA 50 Hz cos phi 0.3 (at 20 °C)
Disipación de calor 6…10 W at 50/60 Hz
Tipo de contactos auxiliares Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Type mirror contact 1 NC conforming to IEC 60947-4-1
Frecuencia del circuito de señalización 25…400 Hz
Corriente mínima de conmutación 5 mA for signalling circuit
Tensión mínima de conmutación 17 V for signalling circuit
Tiempo de no superposición 1.5 Ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
Resistencia de aislamiento > 10 MOhm for signalling circuit
