LEGRAND 36252 STOCK DISPONIBLE
TABLERO EN POLIESTER – > MARCA: LEGRAND -> MODELO: 36252 ; REALIZAMOS ENVIOS A TODO EL PERU LEGRAND ENTREGA INMEDIATA

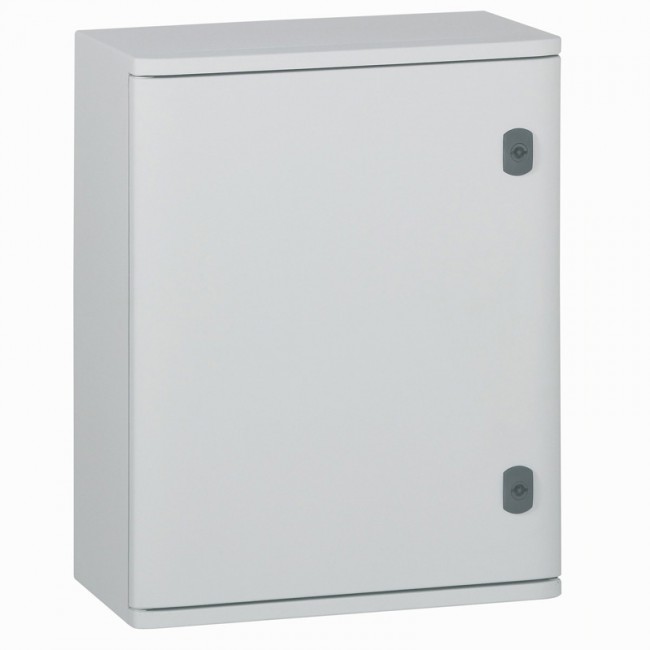

TABLERO EN POLIESTER IP 66 MARINA – 500X400X200 (ALTO-ANCHO-PROF) SIN PLACA —— CABINET MARINA – POLYESTER – IP66 – IK10 –
500X400X206 MM
Pack (number of units) 1
Volume (dm³) 50,995
Weight (g) 6 071,00
Product characteristics General characteristics
RAL 7035 cabinets
External dimensions Height x Width x Depth : 500 x 400 x 206 mm
Corresponding metal cabinets Height x Width x Depth : 500 x 400 x 200
mm
Marina cabinets – polyester – IP 66 – IK 10
IP 66 according to IEC EN 60529. LCIE n°60059283-560528
IK 10 according to IEC EN 62262 (EN 50102)
Class II (used to create totally isoled assemblies acc. to EN
60439-1 and assemblies for photovoltaic installations acc. to
UTE C15-712-1)
Fiber glass reinforced polyester. Self-extinguisting 960°C acc.
to IEC EN 60695-2-11
Adapted to corrosive environment and different weather
conditions (detailed technical sheet available on e-catalogue)
Reversible door, opening 180°, (except Cat.No 0 362 50).
Stainless steel hinge pins (except Cat.No 0 362 50). 2 double
bar lock (1 lock for Cat.No 0 362 50)
Direct fixing of equipment at bottom of cabinet (screws
supplied)
Possible to fit a partial plate from 500 x 400 x 200 mm and/or
rails on intermediate studs (except for Cat.No 0 362 50)
Optional depth adjustment from height 400 x width 300 mm
with Cat.No 0 362 42
Can be equipped with Atlantic accessories
