LEGRAND 36256 STOCK DISPONIBLE
​


TABLERO EN POLIESTER – > MARCA: LEGRAND -> MODELO: 36256 ; REALIZAMOS ENVIOS A TODO EL PERU LEGRAND ENTREGA INMEDIATA

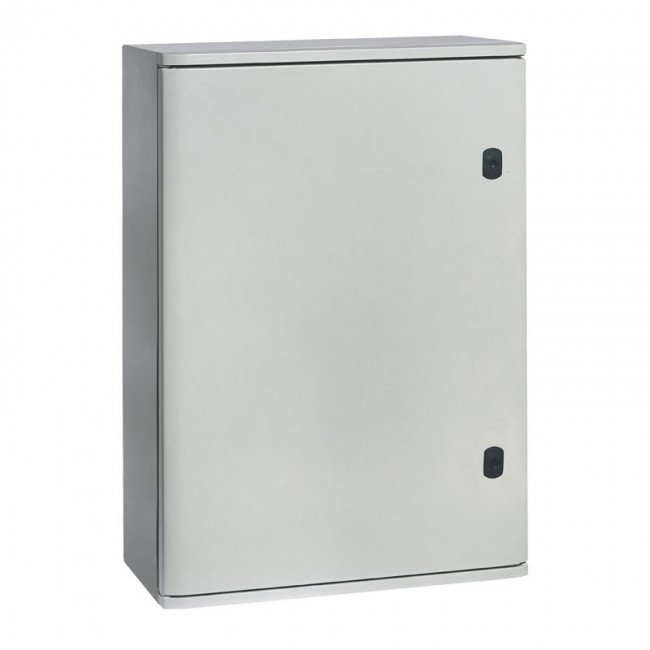

TABLERO EN POLIESTER IP 66 MARINA – 700X500X250 (ALTO-ANCHO-PROF) SIN PLACA ——– CABINET MARINA – POLYESTER – IP66 – IK10 –
720X510X250 MM
Pack (number of units) 1
Volume (dm³) 112,201
Weight (g) 12 400,00

Product characteristics General characteristics
RAL 7035 cabinets
External dimensions Height x Width x Depth : 720 x 510 x 250 mm
Corresponding metal cabinets Height x Width x Depth : 700 x 500 x 250
mm
Marina cabinets – polyester – IP 66 – IK 10
IP 66 according to IEC EN 60529. LCIE n°60059283-560528
IK 10 according to IEC EN 62262 (EN 50102)
Class II (used to create totally isoled assemblies acc. to EN
60439-1 and assemblies for photovoltaic installations acc. to
UTE C15-712-1)
Fiber glass reinforced polyester. Self-extinguisting 960°C acc.
to IEC EN 60695-2-11
Adapted to corrosive environment and different weather
conditions (detailed technical sheet available on e-catalogue)
Reversible door, opening 180°, (except Cat.No 0 362 50).
Stainless steel hinge pins (except Cat.No 0 362 50). 2 double
bar lock (1 lock for Cat.No 0 362 50)
Direct fixing of equipment at bottom of cabinet (screws
supplied)
Possible to fit a partial plate from 500 x 400 x 200 mm and/or
rails on intermediate studs (except for Cat.No 0 362 50)
Optional depth adjustment from height 400 x width 300 mm
with Cat.No 0 362 42
Can be equipped with Atlantic accessories
