LEGRAND 36917 STOCK DISPONIBLE
TABLERO METALICO – > MARCA: LEGRAND -> MODELO: 36917 ; REALIZAMOS ENVIOS A TODO EL PERU LEGRAND ENTREGA INMEDIATA

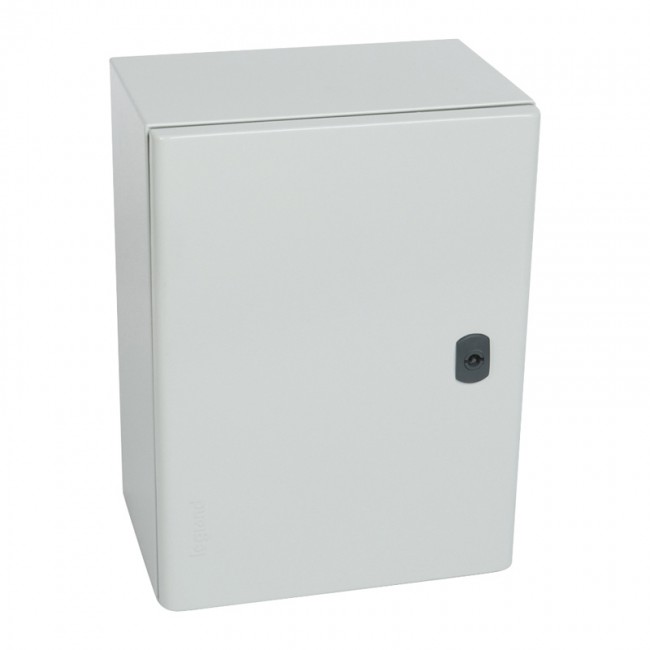

TABLERO METALICO IP 65 ATLANTIC PR – 400X300X200 (ALTO-ANCHO-PROF) INC. PLACA ——– ATLANTIC METAL CABINET – VERTICAL VERSION – 400 X
300 X 200 MM – 1 DOOR
Pack (number of units) 1
Volume (dm³) 41,738
Weight (g) 6 796,00
Product characteristics General characteristics
Metal door cabinets
Supplied with plain plate
Vertical version
External dimensions Height x Width x Depth : 400 x 300 x 200 mm
Number of doors : 1
Weight : 6.9 kg
Atlantic metal cabinets supplied with plain plate – IP
55/IP 66 – IK 10 – Type 4x – Type 12
IP 66 according to standards IEC EN 60529 for 1-door
cabinets – IP 55 according to standards IEC EN 60529 for 2-
door cabinets
IK 10 according to standards IEC EN 62262
LCIE 17 07 90 10A
Type 4x, 1 door, Type 12, 2 doors – cULus, Bureau Veritas
EMC attenuation 20 dB (for an EMC attenuation from 40 to 50
dB at 1 GHz, please consult us)
Excellent resistance to corrosion and chemical agents
80 μm thick textured polyester coating. Anti-corrosion
treatment for hinges and pins
Reversible door – Fitted with lever
Supplied with double bar lock – Self-centering positioning
system for the equipment
Compatible with all Atlantic accessories Low cable entries
RAL 7035 – Optional depth adjustement for cabinets 400 mm
depth, with slide rails Cat.No 0 367 45
